Products Description



The radar level meter series refers to the frequency modulated continuous wave (FMCW) radar products operating at 76-81 GHZ. The maximum quantity of products can reach 65m, blind area at 20cm. Because it has higher operating frequency, larger bandwidth and higher measurement accuracy. The product provides a way to fix the bracket without the need for on-site wiring easy to install.

Product Features



The main advantages of the radar level gauge series are as follows:
1. millimeter wave RF chip, achieve more compact RF architecture, higher signal-to-noise ratio, smaller blind area.
2. 5GHz working bandwidth, so that the product has a higher measurement resolution and measurement accuracy.
3. The narrowest antenna beam Angle of 8°, less interference on the instrument in the installation environment, and more convenient installation.
4. Integrated lens design, compact size.
5. Support mobile phone Bluetooth debugging, convenient on-site personnel maintenance work.



Product Specification



  Measuring range

0.2m~65m

  Measuring accuracy

±1mm

  Beam Angle

 8°

  Power supply range

16~28 VDC

  Communication mode

HART/MODBUS

  Output signal

RS485/4-20mA

  Operating temperature

-30~75

  Shell material

PP

  Antenna type

Lens antenna

  The recommended cable

0.5mm²

  Protection level

IP67

  Mounting Method

Support/thread/flange

  Cable inlet

PG9

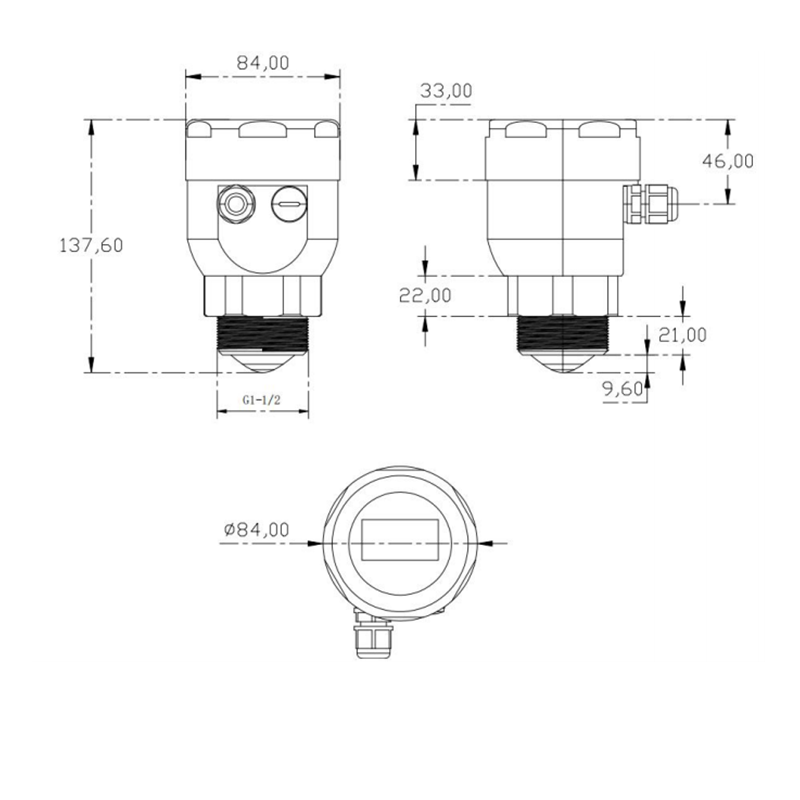

Product Dimensions
