Products Description

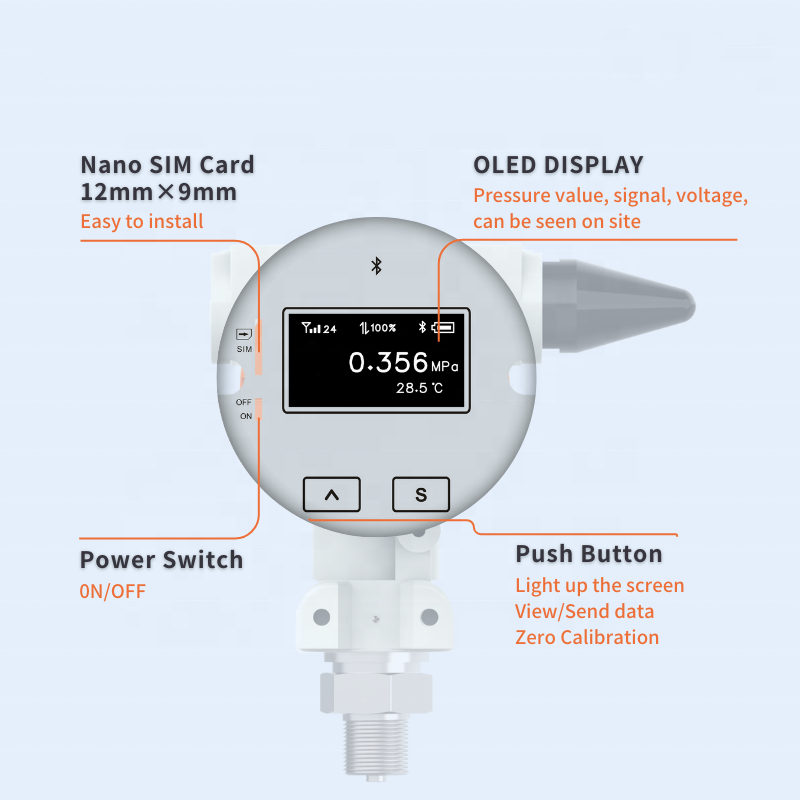

A customizable digital wireless differential pressure transmitter supporting 4G, NB-IoT, LoRaWAN, Zigbee, and WiFi. It features an OLED display, 3.6V 38Ah lithium battery with over 3 years of service life, and low power mode <20uA. Equipped with MQTT/HTTP/TCP protocols, explosion-proof grade ExdIICT6, and IP65 protection. Offers Bluetooth connectivity for mobile app parameter setting, easy installation, and on-site data viewing. Suitable for remote monitoring with over-threshold alarm and remote setting functions.
Product Features
● 4G/LoRaWAN/Zigbee/WiFi
● Remote setting
● Over-threshold Alarm
● MQTT Protocol
● 3.6V/38Ah lithium battery Service life over 3 years
Product Specification
| Pressure Range | 0 ~ 6kPa...3MPa |
| Accuracy | ≤ ±0.075% FS |
| Process Connection | G1/4 or customizable |
| Communication Modes | LoRa/LoRaWAN/Zigbee/NB-IoT/4G/WiFi |
| Power Supply | 3.6V @ 38Ah lithium battery |
| Low Power Mode | <20uA |
| Display | OLED display |
| Communication Protocols | MQTT/HTTP/TCP |
| Ingress Protection | IP65 |
| Explosion Proof | ExdIICT6 |
| Material | Aluminum |
| Pressure Type | Absolute/Sealed Gauge/Gauge |
Product Dimensions
Product Features
● 4G/LoRaWAN/Zigbee/WiFi
● Remote setting
● Over-threshold Alarm
● MQTT Protocol
● 3.6V/38Ah lithium battery Service life over 3 years
Product Dimensions
Product Specification
| Pressure Range | 0 ~ 6kPa...3MPa |
| Accuracy | ≤ ±0.075% FS |
| Process Connection | G1/4 or customizable |
| Communication Modes | LoRa/LoRaWAN/Zigbee/NB-IoT/4G/WiFi |
| Power Supply | 3.6V @ 38Ah lithium battery |
| Low Power Mode | <20uA |
| Display | OLED display |
| Communication Protocols | MQTT/HTTP/TCP |
| Ingress Protection | IP65 |
| Explosion Proof | ExdIICT6 |
| Material | Aluminum |
| Pressure Type | Absolute/Sealed Gauge/Gauge |
