Products Description
This temperature transmitter adopts imported Pt100 temperature sensor as sensing measuring element.
It's fully sealed with IP 68 submersible structure design, and combined varieties of sealing technologies in one compact all stainless steel probe. It's featured of temperature compensation, linear processing circuit with V/I conversion and high-speed AD acquisition. 4-20mA, 0-10V and RS 485 output available for different industrial process and control.
Applications
● Hydropower
● Tap Water
● Petroleum
● Chemical
● Mechanical
● Hydraulic
● Other Industries
Product Features
● Rugged Compact All Stainless Steel Construction.
● 2-Wire 4-20mA Output For Remote Process Control.
● Submersible Deep-Water Temperature Measurement Rated Ip 68.
● It's With High Measuring Accuracy And Long-Term Stability.
● 4-20mA, 0-10V, Rs 485 And Other Outputs Available.
● It's Cold Junction With Low Temperature Drift And Non-Linear Automatic Compensation Function.
● The Signal Converter Encapsulated Into Module With Epoxy Resin, It With Functions Of Anti-Vibration, Anti-Corrosion, Anti-Moisture etc.
Product Specification
| Measuring liquids | Fluids compatible with SS 316L, Polyurethane cable and Nitrile (NBR) O-ring sealing |
| Input signal | RTD PT 100 |
| Temperature range | -20 - 100 ℃ |
| Power | DC 12-30V (Std.DC 24V); DC 8-30V (RS485 Communication) |
| Output signal | 4mA - 20mA DC (2-wire); 0/1V - 5/10V DC (3-wire); RS 485 Mod_Bus (4-wire) |
| Accuracy | 0.5%F.S. |
| Insulation resistance | 100 MΩ / 250 VDC |
| Electrical connection | 2-wire (3-wire 4-wire optional) |
| Long-term stability | ≤0.5%F.S. / Y |
| Housing material | Sensor housing: SS 304, Vented cable: polyurethane |
| Protection | IP68 |
| Ambient temperature | -40 - 85 ℃ |
| Certificates | CE, ISO, RoHs |

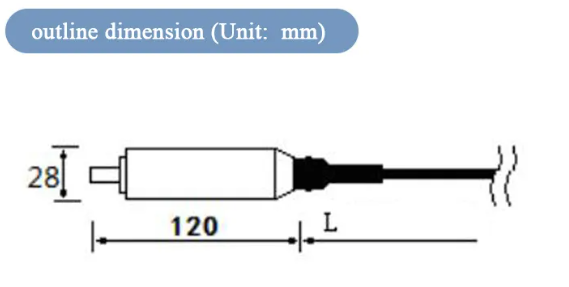

Product Dimensions
Product Features
● Rugged Compact All Stainless Steel Construction.
● 2-Wire 4-20mA Output For Remote Process Control.
● Submersible Deep-Water Temperature Measurement Rated Ip 68.
● It's With High Measuring Accuracy And Long-Term Stability.
● 4-20mA, 0-10V, Rs 485 And Other Outputs Available.
● It's Cold Junction With Low Temperature Drift And Non-Linear Automatic Compensation Function.
● The Signal Converter Encapsulated Into Module With Epoxy Resin, It With Functions Of Anti-Vibration, Anti-Corrosion, Anti-Moisture etc.
Product Dimensions
Product Specification
| Measuring liquids | Fluids compatible with SS 316L, Polyurethane cable and Nitrile (NBR) O-ring sealing |
| Input signal | RTD PT 100 |
| Temperature range | -20 - 100 ℃ |
| Power | DC 12-30V (Std.DC 24V); DC 8-30V (RS485 Communication) |
| Output signal | 4mA - 20mA DC (2-wire); 0/1V - 5/10V DC (3-wire); RS 485 Mod_Bus (4-wire) |
| Accuracy | 0.5%F.S. |
| Insulation resistance | 100 MΩ / 250 VDC |
| Electrical connection | 2-wire (3-wire 4-wire optional) |
| Long-term stability | ≤0.5%F.S. / Y |
| Housing material | Sensor housing: SS 304, Vented cable: polyurethane |
| Protection | IP68 |
| Ambient temperature | -40 - 85 ℃ |
| Certificates | CE, ISO, RoHs |
