Products Description

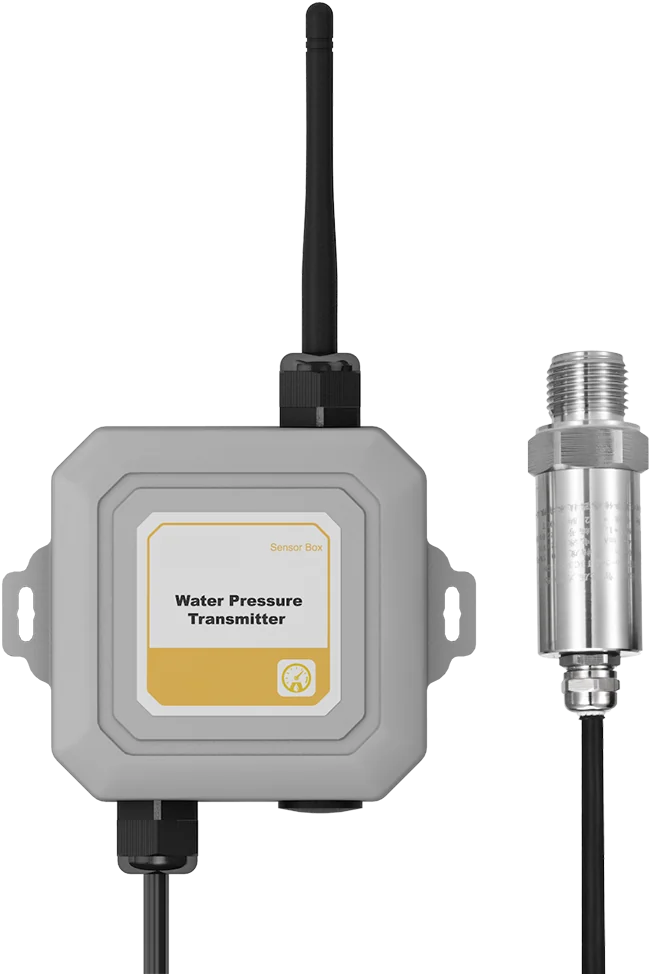

Based on the LoRaWAN protocol, this device is equipped with a highly stable and reliable piezoresistive pressure sensor for exceptional performance. It offers a customized pressure range from 0MPa to 100MPa and customizable cable lengths to meet diverse monitoring requirements. Leveraging LoRa spread spectrum communication technology and an external omnidirectional antenna, it significantly extends wireless signal reach. With low power consumption, it extends battery life and reduces maintenance frequency. Easy to install and maintain, it can be pole-mounted or wall-mounted. It is an excellent choice for industries, municipalities, and environmental monitoring, combining performance, ease of use, and ruggedness.
Product Features
● Supports LoRaWAN protocol
● Wide Range: 0-10KPa...100MPa (Optional)
● Built-in 19000mAH battery or DC 12-24V (Optional solar power)
● User-Defined Pressure Thresholds
● Ingress Protection：IP64
● Accurancy: ±0.1%FS/±0.25%FS/±0.5%FS (Optional)
● Low power consumption
Product Specification
| Pressure sensor - Range | 0-10MPa, 1-100MPa (Optional) |
| Pressure sensor - Accuracy | ±0.1%FS, ±0.25%FS, ±0.5%FS (Optional) |
| Pressure sensor - Stability | ±0.2%FS/year, ±0.1%FS/year |
| Pressure sensor - Output Signal | 0-2.5V DC |
| Pressure sensor - Connector Material | 304 Stainless Steel |
| Pressure sensor - Thread Interface | M20*1.5 (Options: G1/4, G1/2 are available) |
| Pressure sensor - Cable Length | 1.5meters (Customized) |
| Wireless performance - Data TX Rate | 300bps-6.4kbps |
| Wireless performance - Frequency Bands | CN470MHz-510MHz EU863MHz-870MHz US902MHz-928MHz AS923MHz AS923-1(915MHz) RU864-870MHz IN865-867MHz |
| Wireless performance - Max Tx Power | 16dBm |
| Wireless performance - Rx Sensitivity | -140dBm(SF=12) |
| Working Environment - Operating Temperature | -20-75℃ |
| Working Environment - Operating Humidity | 15%-95% (no condensing) |
| Power Supply - Power Supply | Built-in battery |
| Power Supply - Battery Capacity | Li-SOCl₂ 3.6V 20000mAh |
| Power Supply - Input voltage | DC 3.6V |
| Power Supply - Standby Current | ≤10μA |
| Power Supply - TX Current | ≤130mA |
| Physical Parameter - Ingress Protection | IP64 |
| Physical Parameter - Dimension | Sensor Box: 110mm110mm58mm (antenna excluded) Pressure sensor: 112mm*Φ30mm |
