Products Description
This ultrasonic level sensor with IP67 protection is easy to install, using non-contact ultrasonic technology to measure air height (500cm range, 0-15cm blind area) for liquid or solid level management in closed/open containers and rivers, even calculating volumes; it supports LoRaWAN, NB-IoT, 4G, Sigfox and LTE-M for 24h remote monitoring, with wireless data transmission via TCP/MQTT protocols, offers power options of an 8500mAh lithium battery or customizable external supply, has adjustable detection intervals (10-minute default), can be mounted via top threads or screws, comes with optional GPS, and includes a 1-year warranty with CE/FCC/RoHS certifications.
Applications
● Close containers
● Open containers
● Rivers
● Diesel tank level monitoring
● River level monitoring
● Heat transfer fluid level monitoring
● Volume calculation of containers/liquids
Product Features
● Ultrasonic-based non contact measurement, 5m measuring range.
● Remote monitoring through wireless module, global frequency bands available.
● Threaded mounting or screw mounting, 3 pipe thread sizes (1.5inch, 2 inch, 2.25inch) to adapt ready inlet.
● Inner battery 8500mAh, low power consumption.
● Option for external power supply.
● Option for GPS module.
● IP67 for outdoor using.
● TCP protocol with SDK in Python, Java-script.
● Dashboard monitoring / Email notification / SMS notification (platform related)
Product Specification

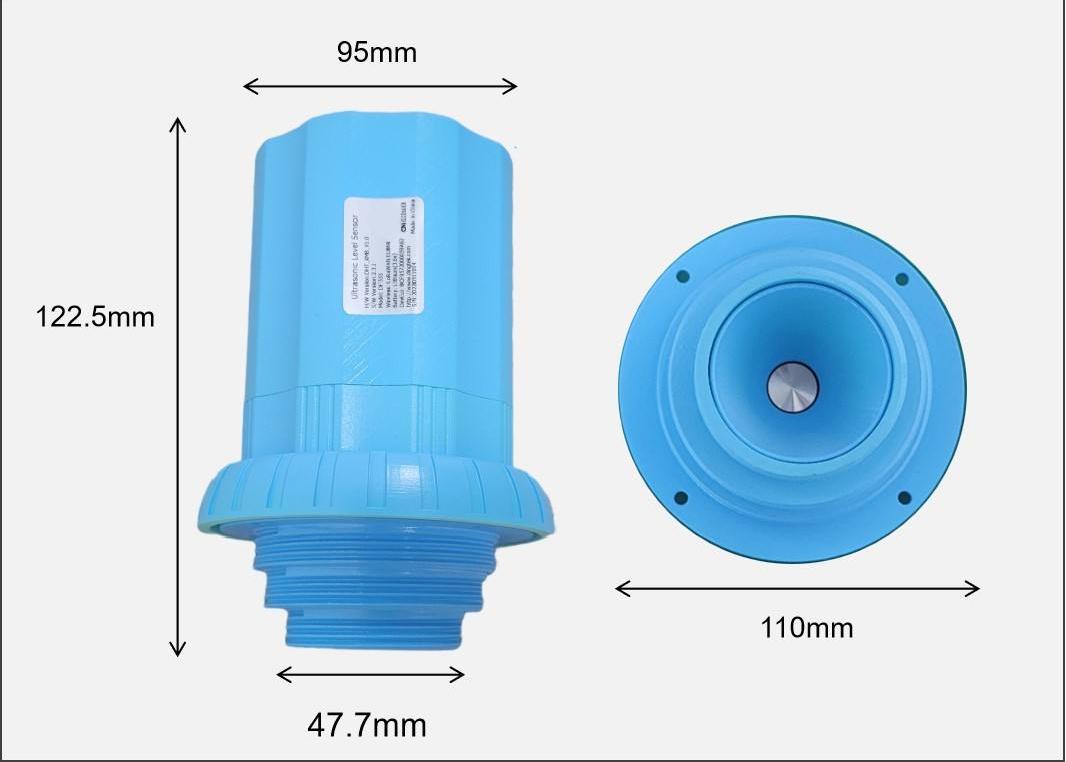

Product Dimensions
Product Features
● Ultrasonic-based non contact measurement, 5m measuring range.
● Remote monitoring through wireless module, global frequency bands available.
● Threaded mounting or screw mounting, 3 pipe thread sizes (1.5inch, 2 inch, 2.25inch) to adapt ready inlet.
● Inner battery 8500mAh, low power consumption.
● Option for external power supply.
● Option for GPS module.
● IP67 for outdoor using.
● TCP protocol with SDK in Python, Java-script.
● Dashboard monitoring / Email notification / SMS notification (platform related)
Product Dimensions
Product Specification
