Products Description
This transmitter is a low-power, with intelligent wireless communications instruments, advanced industrial-grade MCU as the core, high-quality sensor for the collection front-end,
combined with industrial-grade wireless GPRS data module, the use of China Mobile's mature GPRS network, to achieve the field instrument data to the cloud wireless transmission. The instrument reports the data according to the set interval, customers through the Web page to achieve remote instrument configuration and data access, upload and distribution of data are stored in the database, to facilitate the latter part of the query.Through the Internet PC or mobile terminal to access the relevant Web site to obtain instrument data and to achieve the collection of data statistics, analysis, form report and data curves, with intuitive, accurate and efficient features.
Applications
● Hydraulic monitoring
● Water pipe pressure
● High pool level
● Environmental parameter detection
Product Features
● GPRS network wide range application
● LCD real-time display
● The power supply reverse connect protection
● Upper and lower limit alarm function
● Networked automatic calibration,Broken network automatic reconnection
● Button operation, can configure the instrument
● Web side view and remote configuration instrument, support SMS query data
● With functions of shockproof, moisture-proof, adapt to the outdoor environment
Product Specification
pressure medium of zigbee window sensor | liquid compatible stainless steel |
pressure ranges of 5v gps module | 0~3 m(diesel) |
overload pressure of zigbee pressure sensor | 150%FS |
output signal of zigbee pressure sensor | 4~20mA, 0.5 ~4.5V, 0~5V gps module |
accuracy of zigbee window sensor | 0.5%FS (standard) |
load resistance of pressure sensor | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
long term stability of zigbee pressure senor | 0.2%FS/year |
Power supply of zigber window sensor | 10VDC -35VDC 3.6VDC(battery supply) |
compensated temperature range | -20~80°c |
operating temperature range | -25~+85°c |
storage temperature range | -25~+85°c |
temperature coefficient of zero | 1.5%FS (Max) |
temperature coefficient of span | 1.5%FS (Max) |
communication frequency band | 2.405GHz~2.480GHz |
working time of zigbee window sensor | 180s~60000s |
insulation resistance | 100MΩ@ 250VDC |
Process connection | G1/4 or others you can OEM |
Protection grade | IP65 of zigbee pressure sensor |
material of wetted part and housing | 1Cr18Ni9Ti |
material of pressure membrane | 316L of 5v gps module |
Response time | 1ms of zigbee pressure sensor |

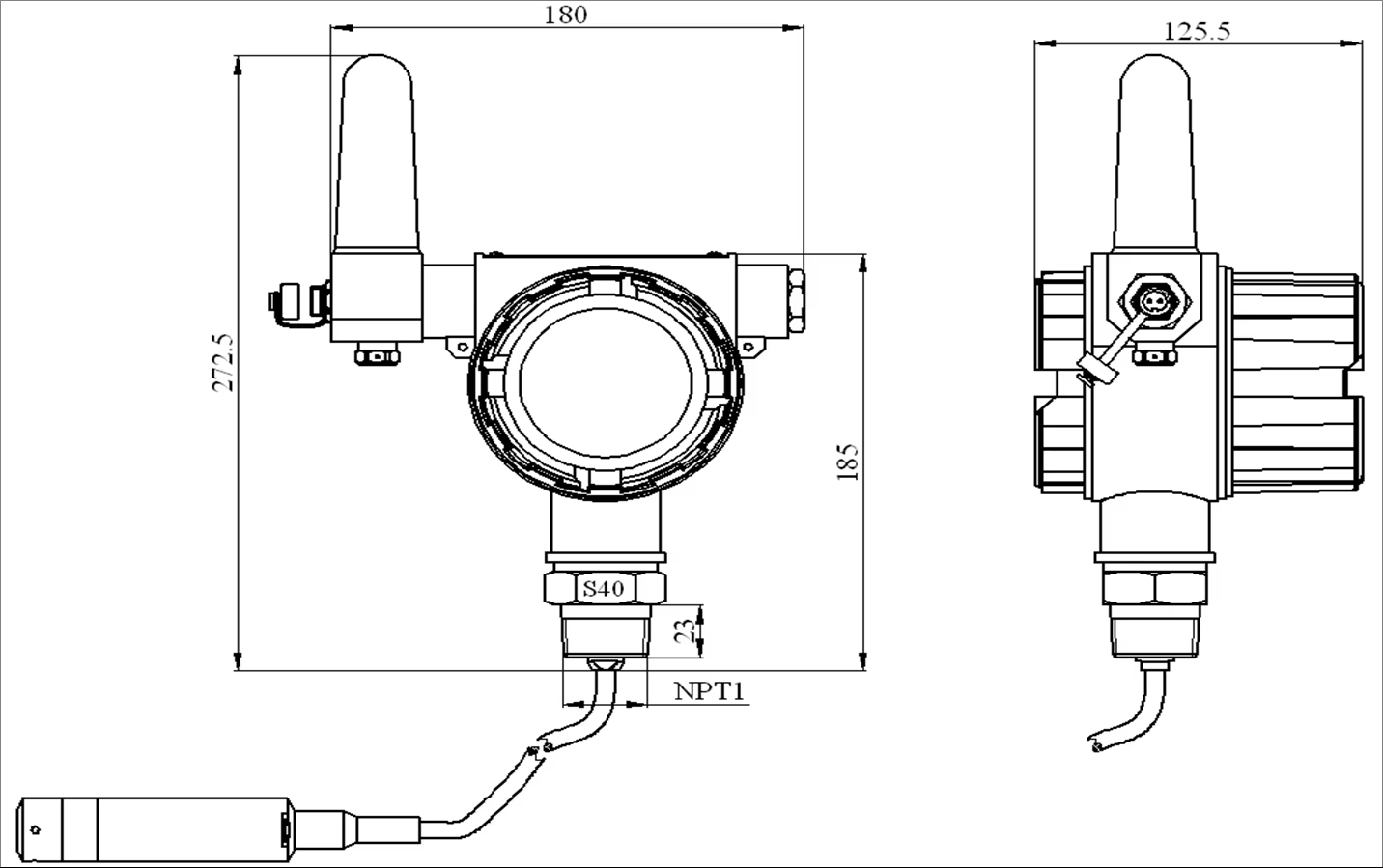

Product Dimensions
Product Features
● GPRS network wide range application
● LCD real-time display
● The power supply reverse connect protection
● Upper and lower limit alarm function
● Networked automatic calibration,Broken network automatic reconnection
● Button operation, can configure the instrument
● Web side view and remote configuration instrument, support SMS query data
● With functions of shockproof, moisture-proof, adapt to the outdoor environment

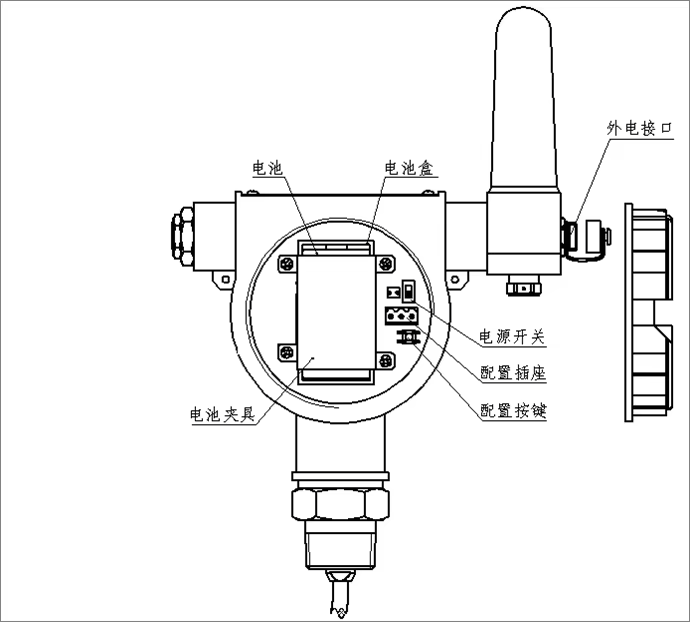

Product Dimensions
Product Specification
pressure medium of zigbee window sensor | liquid compatible stainless steel |
pressure ranges of 5v gps module | 0~3 m(diesel) |
overload pressure of zigbee pressure sensor | 150%FS |
output signal of zigbee pressure sensor | 4~20mA, 0.5 ~4.5V, 0~5V gps module |
accuracy of zigbee window sensor | 0.5%FS (standard) |
load resistance of pressure sensor | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
long term stability of zigbee pressure senor | 0.2%FS/year |
Power supply of zigber window sensor | 10VDC -35VDC 3.6VDC(battery supply) |
compensated temperature range | -20~80°c |
operating temperature range | -25~+85°c |
storage temperature range | -25~+85°c |
temperature coefficient of zero | 1.5%FS (Max) |
temperature coefficient of span | 1.5%FS (Max) |
communication frequency band | 2.405GHz~2.480GHz |
working time of zigbee window sensor | 180s~60000s |
insulation resistance | 100MΩ@ 250VDC |
Process connection | G1/4 or others you can OEM |
Protection grade | IP65 of zigbee pressure sensor |
material of wetted part and housing | 1Cr18Ni9Ti |
material of pressure membrane | 316L of 5v gps module |
Response time | 1ms of zigbee pressure sensor |
