Products Description

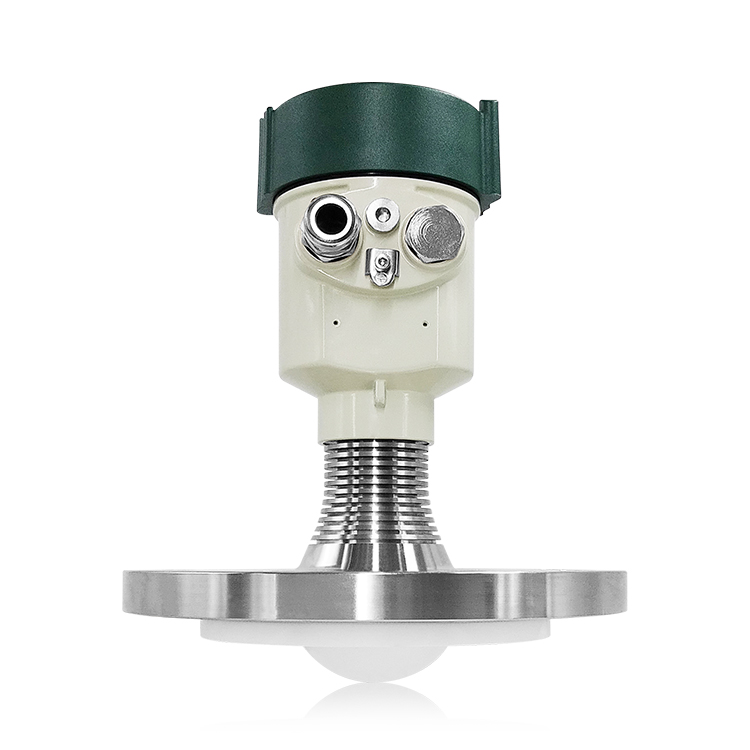

76-81GHz frequency modulated continuous wave (FMCW) radar products support four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 120m, and the blind zone can reach 10 cm. Because it operates at a higher frequency and shorter wavelength, it is especially suitable for solid-state applications. The way it emits and receives electromagnetic waves through a lens has unique advantages in high-dust, harsh temperature environments (+200°C). The instrument provides flange or thread fixation methods, making installation convenient and easy.
Applications
● Crude oil
● Acid and alkali storage tank
● Pulverized coal storage tank
● Slurry storage tank,
● Solid particles
Product Features
● Millimeter wave RF chip
● 5GHz working bandwidth
● The narrowest 3° antenna beam angle
● The wavelength is shorter
● Support mobile phone Bluetooth debugging
Product Specification

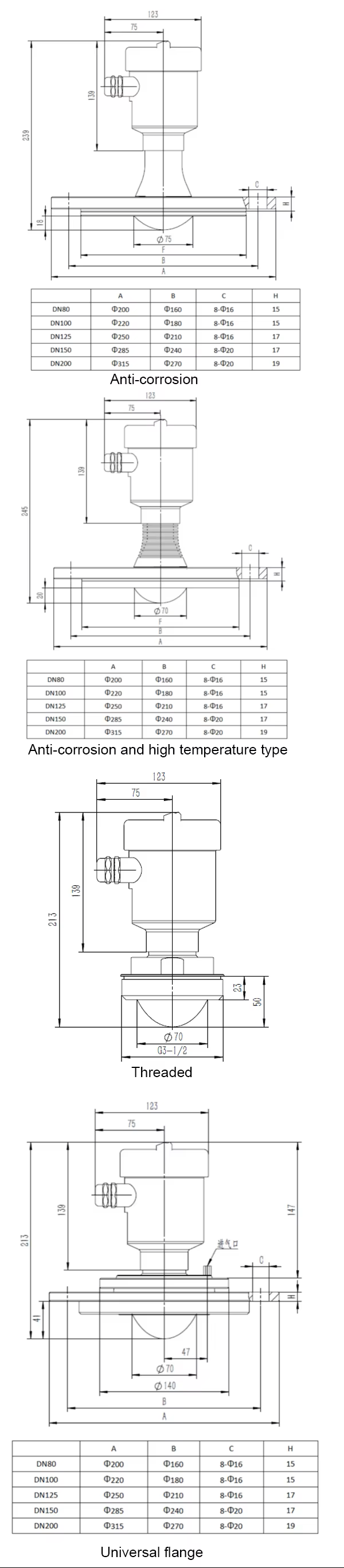

Product Dimensions
Product Features
● Millimeter wave RF chip
● 5GHz working bandwidth
● The narrowest 3° antenna beam angle
● The wavelength is shorter
● Support mobile phone Bluetooth debugging
Product Dimensions
Product Specification
