Products Description
This is a high-accuracy wireless tank water level meter sensor, specifically a radar level transmitter operating at 76GHz~81GHz with non-contact measurement. It has a measuring range of 0-65m (customizable for over 65m up to 120m), a measurement accuracy of ±1mm, and an 8° beam angle. Powered by 18-28 VDC, it offers 4-20mA (supporting Bluetooth) and RS485 outputs, with an IP68 protection level and a POM material housing. Operating at -40℃~75℃, it can be installed via bracket, thread, or flange, and is suitable for measuring water levels in rivers, embankments, lakes, tanks, and other scenarios, with customizable options available.
Product Features
● Independently developed 80GHz radar water level meter
● With LED backlight display and protective cover
● Measures river and tank water levels up to 65m
● Outputs RS485 or 4-20mA signals
● Offers threaded, flange, or bracket connections
● Optional Bluetooth function
● Customizable color for bulk orders
● Made of POM material
● Features 1.5-inch thread
Product Specification

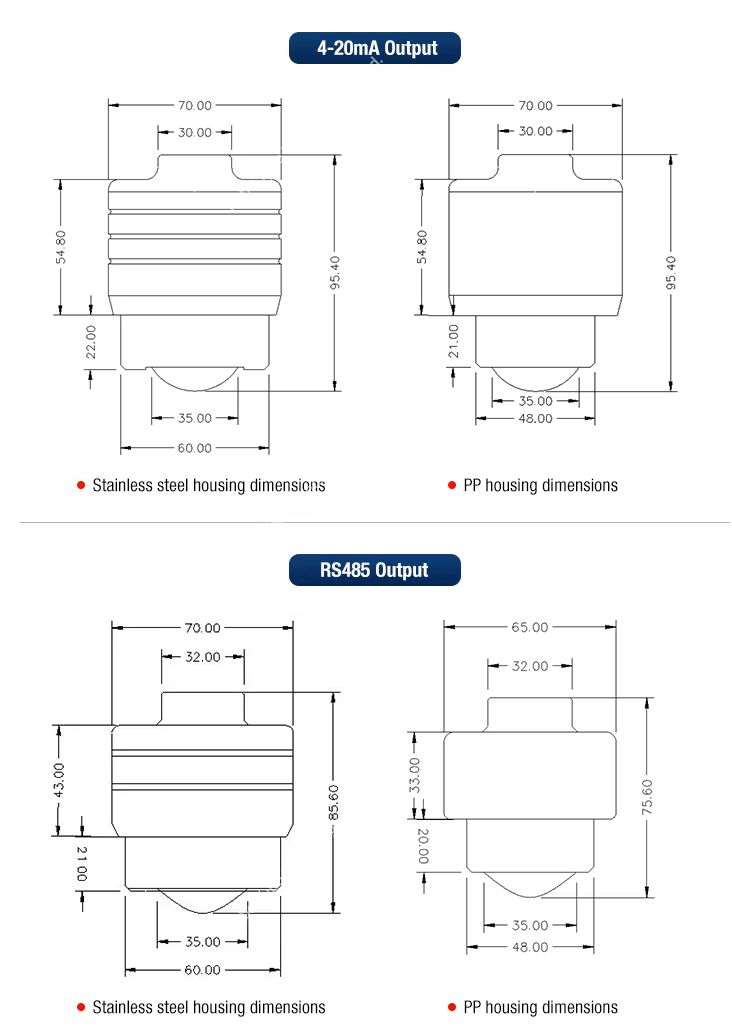

Product Dimensions
Product Features
● Independently developed 80GHz radar water level meter
● With LED backlight display and protective cover
● Measures river and tank water levels up to 65m
● Outputs RS485 or 4-20mA signals
● Offers threaded, flange, or bracket connections
● Optional Bluetooth function
● Customizable color for bulk orders
● Made of POM material
● Features 1.5-inch thread
Product Dimensions
Product Specification
