GPRS Zigbee Module Water Pressure Level Sensor Wireless With LCD Real-time Display

GPRS Zigbee Module Water Pressure Level Sensor Wireless With LCD Real-time Display

● GPRS network wide range application

● LCD real-time display

● The power supply reverse connect protection

● Upper and lower limit alarm function

● Networked automatic calibration,Broken network automatic reconnection

● Button operation, can configure the instrument

● Web side view and remote configuration instrument, support SMS query data

● With functions of shockproof, moisture-proof, adapt to  the outdoor environment
Send Inquiry
Products Description



This series of pressure sensor is featuring small size, stable performance and mass production.It is a Piezoelectric pressure sensor applied in HVAC , air compressor,air conditioner,pipeline pressure testing,liquid pressure system,pressure switch,industrial,water treatment and hydraulic pressure test. It is work as industrial pressure measurement can be use as engine fuel pressure sensor, gas pressure industries,  hydraulic pressure sensor, oil pressure sensor, water pipe pressure sensor, steam pressure sensor, pipe pressure sensor, pressure sensor lpg, The pressure sensor are made of 316 stainless steel. The pressure sensing elements and chips are selected from German international brands. The products are approved with CE, intrinsically safe, and explosion proof certificates, so can be use in gas, lpg industry.

Applications

● Hydraulic monitoring

● Water pipe pressure

● High pool level

● Environmental parameter detection

Product Features



● GPRS network wide range application

● LCD real-time display

● The power supply reverse connect protection

● Upper and lower limit alarm function

● Networked automatic calibration,Broken network automatic reconnection

● Button operation, can configure the instrument

● Web side view and remote configuration instrument, support SMS query data

● With functions of shockproof, moisture-proof, adapt to  the outdoor environment



Product Specification



pressure medium of zigbee water level sensor

 liquid compatible stainless steel

 pressure ranges

 0~3 m(diesel)

 overload pressure

 150%FS water level sensor wireless

 output signal of zigbee pressure sensor

 4~20mA, 0.5 ~4.5V, 0~5V zigbee pressure sensor

 accuracy of zigbee window sensor

 0.5%FS (standard)

 load resistance of pressure sensor

RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output)

 long term stability

  0.2%FS/year

 Power supply

  10VDC -35VDC  3.6VDC(battery supply)

 compensated temperature range

  -20~80°c

 operating temperature range

  -25~+85°c

 storage temperature range

  -25~+85°c

 temperature coefficient of zero

 1.5%FS (Max)

 temperature coefficient of span

 1.5%FS (Max)

communication frequency band

2.405GHz~2.480GHz

working time of zigbee window sensor

180s~60000s of water level sensor wireless

 insulation resistance

 100MΩ@ 250VDC

 Process connection

 G1/4 or others you can OEM

 Protection grade

 IP65 of zigbee pressure sensor

 material of wetted part and housing

 1Cr18Ni9Ti

 material of pressure membrane

 316L of 5v gps module

 Response time

 1ms of zigbee water level sensor

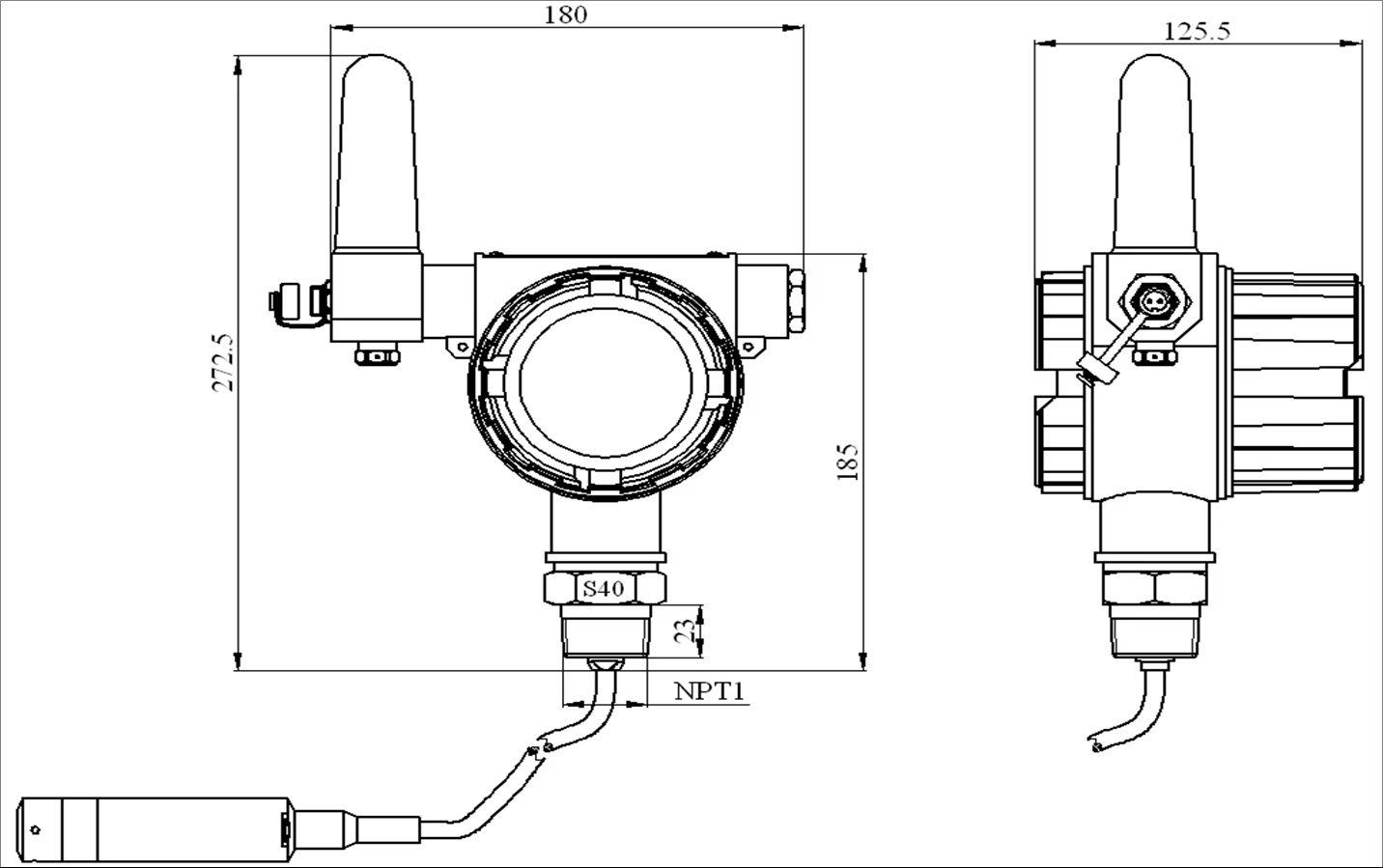

Product Dimensions



Product Features



● GPRS network wide range application

● LCD real-time display

● The power supply reverse connect protection

● Upper and lower limit alarm function

● Networked automatic calibration,Broken network automatic reconnection

● Button operation, can configure the instrument

● Web side view and remote configuration instrument, support SMS query data

● With functions of shockproof, moisture-proof, adapt to  the outdoor environment



Product Dimensions
Product Specification



pressure medium of zigbee water level sensor

 liquid compatible stainless steel

 pressure ranges

 0~3 m(diesel)

 overload pressure

 150%FS water level sensor wireless

 output signal of zigbee pressure sensor

 4~20mA, 0.5 ~4.5V, 0~5V zigbee pressure sensor

 accuracy of zigbee window sensor

 0.5%FS (standard)

 load resistance of pressure sensor

RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output)

 long term stability

  0.2%FS/year

 Power supply

  10VDC -35VDC  3.6VDC(battery supply)

 compensated temperature range

  -20~80°c

 operating temperature range

  -25~+85°c

 storage temperature range

  -25~+85°c

 temperature coefficient of zero

 1.5%FS (Max)

 temperature coefficient of span

 1.5%FS (Max)

communication frequency band

2.405GHz~2.480GHz

working time of zigbee window sensor

180s~60000s of water level sensor wireless

 insulation resistance

 100MΩ@ 250VDC

 Process connection

 G1/4 or others you can OEM

 Protection grade

 IP65 of zigbee pressure sensor

 material of wetted part and housing

 1Cr18Ni9Ti

 material of pressure membrane

 316L of 5v gps module

 Response time

 1ms of zigbee water level sensor
