Tuya mobile phone application ultrasonic water level sensor



Product Connection

1. First, turn on the AC/DC adapter power, then activate the sensor's power.

 2. Scan the QR code to download "Tuya Smart App" or "Smart Life App" on your mobile device.

3. Network Reset Hold down the button for 5 seconds until the LED flashes rapidly, then release it to reset the network and connect the device automatically.

 4. Connect Sensor to App Enable WiFi and Bluetooth on your phone, open the app, and add the device.

Product Settings

1. Set the installation height, which is the distance between the sensor and the bottom of the tank.

2. The pump works in default mode of filling.

 3. Set the maximum value of high level alarm.

4. Set the minimum value of low level alarm

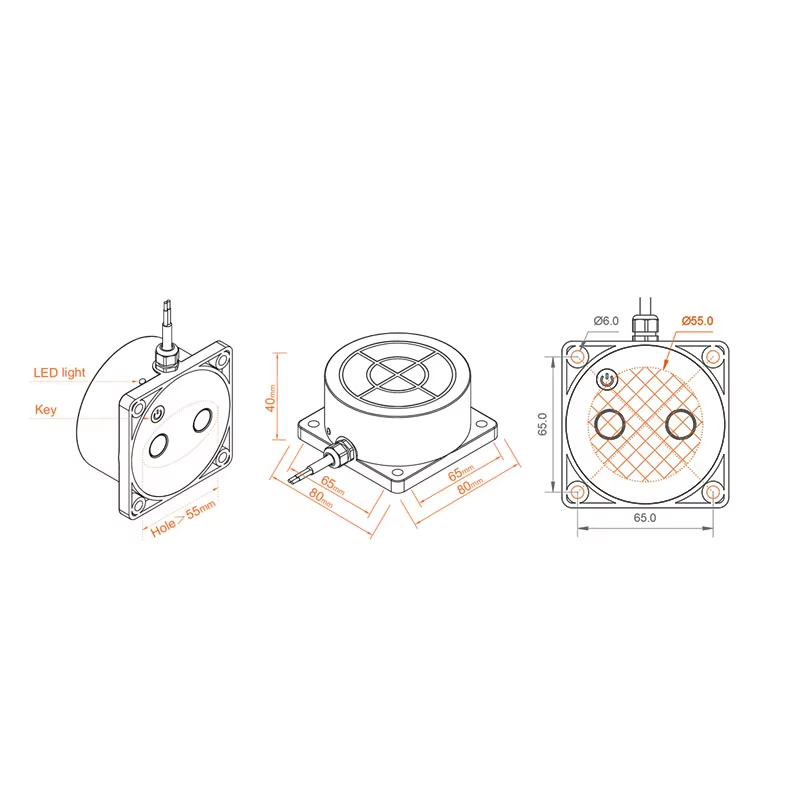

Product installation

1. Paste a 3m installation mark in the center of the tank.

 2. Drill a hole with a diameter of 55mm in the middle of the label;

3. Place the sensor above the hole, so that it is centered and the probe is unobstructed;

4. Tighten the sensor with a self-tapping screw.



●Reliable distance detection capability

●Easy to install and use.

●High durability

●Highly versatile

●Low maintenance costs





Measurement Accuracy	±0.02m
Place of Origin	Shaanxi, China
Material	PC, PC
Warranty Period	1 year
Customization Support	OEM, ODM, OBM, Software Reengineering
Brand	ATECH
Smart Application	Tuya App
Application	Water / Oil Tank
Usage	Home Automation System
Operating Temperatures	-20-70℃
Operation System	Android, iOS APP, Remote Control
APP	Tuya SmartLife
Measuring Range	0.1m~4.0m
Power Supply	100-240VAC
Product Name	Fluid Level Monitor
Grade	Industrial
Mode	WIFI (2.4GHz)
