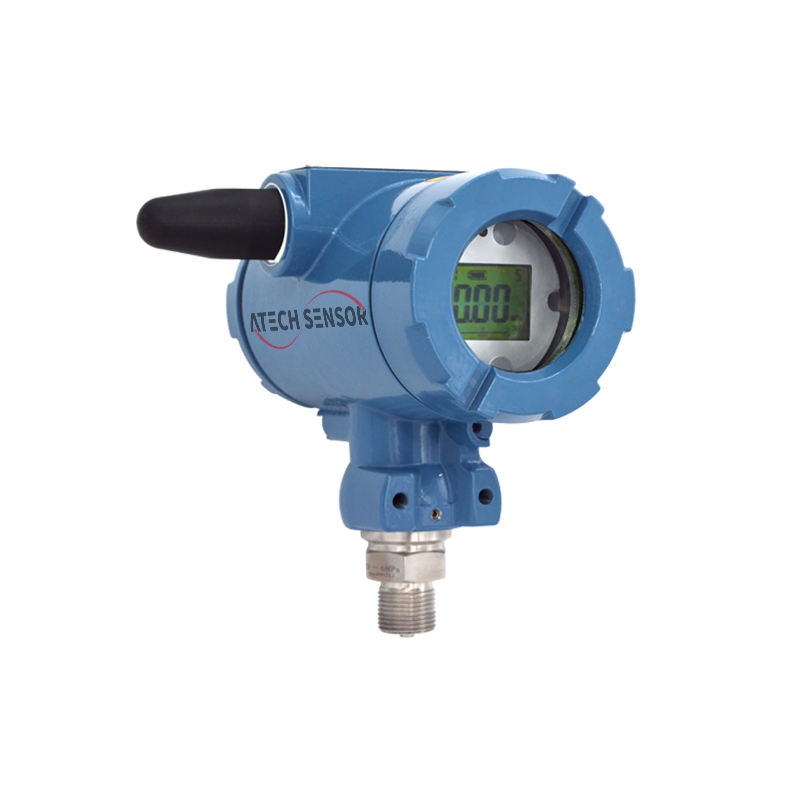

Wireless Pressure Transducer is also called Wireless Pressure Transmitter. Wireless Pressure Transducer is a wireless remote transmission module added to the common pressure transmitter. Works with the receiver. Battery powered. Can realize true wireless working wireless transmission. This product has a variety of wireless transmission methods, including GPRS/LoRa/NB-IoT/ZigBee.
1.Features of Wireless Pressure Transducer
- Five-digit LCD screen, white backlight;
- Waterproof design, waterproof grade ≥IP66;
- GPRS/NB-iot optional, LORA protocol can be customized development;
- Cast aluminum explosion-proof shell, durable, beautiful product;
- The protocol is self-edited and can be customized, timely transmission and alarm;
- Sending interval, the buttons can be adjusted from 1 minute to 24 hours;
- Low power consumption design, 3.6V lithium battery power supply, can support more than 15000 times;
- Remote parameter configuration (transmission frequency, collection frequency, alarm value, etc.) to reduce maintenance costs.
2.Specifications of Wireless pressure transducer
2.1Wireless pressure sensor specifications
Parameter |
| Unit | Specification | Notes |
| Type A |
| Gases or dilute liquids |
|
Pressure Medium | Type B |
| Viscous fluids or fluids with particles | 1 |
| Type C |
| Sanitary applications, such as food industry or pharmaceutical industry |
|
| Gauge | bar | -1~0, 0~0.1, ~0.2, ~0.35, ~0.7, ~1, ~2, ~4, ~6, ~10, ~16, ~20, ~35 |
|
Pressure Reference & Range | Absolute | bar | 0~0.35, ~0.7, ~1, ~2, ~4, ~6, ~10, ~16, ~20, ~35, ~70, ~100, ~250, ~400 | 2 |
| Sealed Gauge | bar | 0~600, ~1000 |
|
Proof Pressure |
| % fs | 200 for ranges < 100bar, 150 for ranges ≥ 100bar | 3 |
Burst Pressure |
| % fs | 300 for ranges < 100bar, 200 for ranges ≥ 100bar |
|
Wireless Communication Protocol |
|
| LoRa (standard), Zigbee | 4 |
Communication Distance |
| m | LoRa: ≥ 2000, Zigbee: ≥ 200 |
|
Data Transmission Rate |
|
| 1 time per minute, ..., 1 time every 12 hours (field adjustable) |
|
Accuracy |
| % fs | Better than ± 0.5 | 5 |
Long-Term Stability |
| % fs/year | Better than ± 0.2 |
|
Supply Voltage |
| Vdc | 3.6 | 6 |
Battery Life |
| years | ≥ 2, if data transmission rate is less than 1 time every 2 hours | 6 |
Medium Temperature Range |
| °C | -40 ~ +125 |
|
Ambient Temperature Range |
| °C | -40 ~ +85 |
|
Storage Temperature Range |
| °C | -40 ~ +85 |
|
Compensation Temperature Range |
| °C | -10~70 (0~50 °C for ranges ≤ 2bar) |
|
Zero Temperature Coefficient |
| % fso/°C | ≤ ±0.03 | 7 |
Span Temperature Coefficient |
| % fso/°C | ≤ ±0.03 | 7 |
| Type A |
| M20x1.5 male thread, other threads available upon request |
|
Process Connection | Type B |
| G1/2 male thread, other threads available upon request |
|
| Type C |
| DN50, other sizes available upon request |
|
Pressure Diaphragm |
|
| 316L stainless steel (standard), Hastelloy-C |
|
Wetted Parts Material |
|
| 316 SS |
|
Electronic Housing Material |
|
| Aluminum alloy |
|
Environmental Protection |
|
| IP66 |
|
Explosion Protection |
|
| Exd IIC T5 Gb, Exia IIB T4 Ga |
|
Display |
|
| 4 ½ digit LCD display |
|
Net Weight |
| kg | ~2 |
|
3.How wireless pressure transmitters work
The wireless pressure transmitter has optimized the circuit design, power management, communication protocol, and realized the “micro-power consumption” design of wireless communication. Using micro-transmission power and high-sensitivity receiving strategy, it has the advantages of real-time online monitoring of battery power and so on.
The The wireless pressure transmitter system is mainly composed of a pressure sensor., signal processing circuit, wireless module, power management circuit, battery and antenna. On this basis, a wireless remote transmission module is added, which can form a pressure acquisition system with our intelligent wireless receiving terminal.
This system has changed the transmission mode of RS485 and 4-20mA current signal and the power supply mode of switching power supply in the past, and used 3.6V lithium battery for power supply. This simplifies the installation method and saves the cost of customer wiring. Really achieve the purpose of energy saving and environmental protection.
4.Battery-powered wireless pressure transmitter
The wireless pressure transmitter is a high-precision, low-power radio transmission pressure detection instrument. Powered by a lithium battery, IP65 waterproof cast aluminium casing. Supports data recording and data supplementary transmission functions. No wiring, no external power supply required. Built-in 3.6V lithium battery.
5.Applications of wireless pressure transducer
- Pipeling pressure monitoring
- Machinery andoil industry
- Paper making, pharmaceutical
- Electric power, environmental protection and food industry
- metallurgical and chemical industry
- 6 Field or inconvenient power distribution

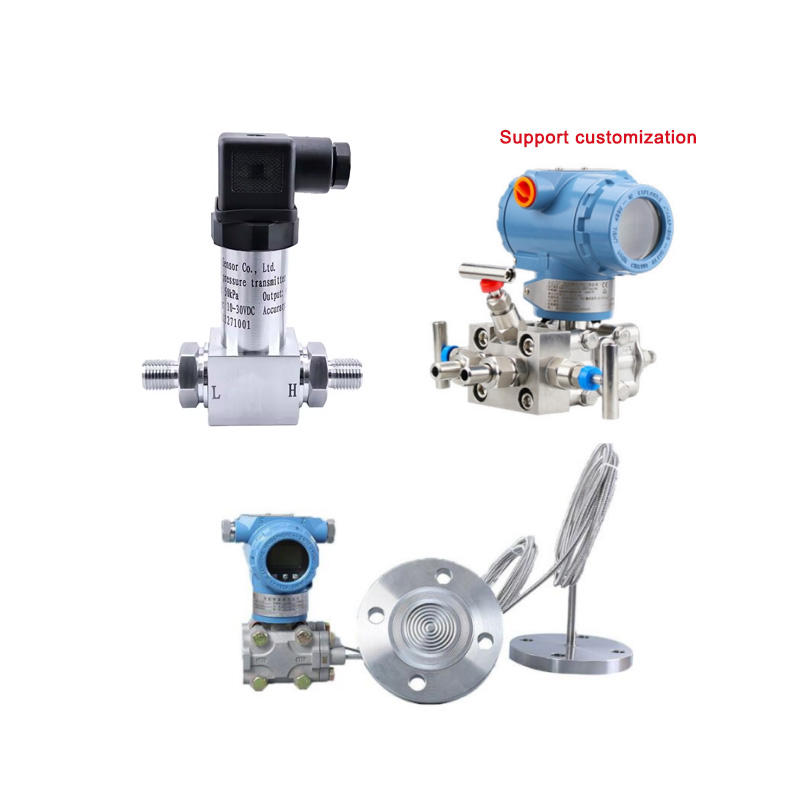

6.Wireless differential pressure sensor
Wireless differential pressure sensor is a type of differential pressure sensor that transmits wirelessly. Support test software with display, curve recording, data storage and other functions. It is mainly used for the measurement and monitoring system of gas pressure difference. This product is a wireless product developed mainly for environments where on-site wiring is inconvenient.This product can also output RS485 signal of MODBUS communication protocol and analog signal of 0~5VDC, which is a true 3-in-1 product. It is convenient for on-site customers to use data acquisition systems in different fields.Wireless differential pressure sensors are mainly used for:
7.Wireless differential pressure sensors are mainly used in:
- Pipeline differential pressure long distance transmission
- Filter network monitoring
- Pipeline differential pressure monitoring
- Power station operation inspection
- Locomotive brake system
- Thermoelectric unit
- Building fire pressure monitoring
- Industrial process detection and control
- Laboratory pressure calibration, etc.
