High Pressure Hammer Union Pressure Transducer 30-140MPa 4-20mA Output IP67 Sensor for Oil Drilling Equipment

High Pressure Hammer Union Pressure Transducer 30-140MPa 4-20mA Output IP67 Sensor for Oil Drilling Equipment

Send Inquiry

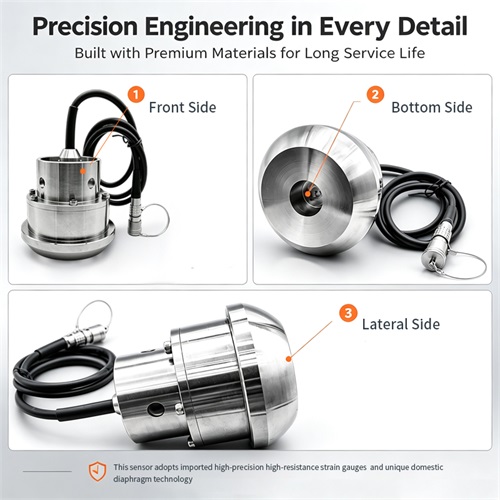

Products Description




Product Features



①Measuring range covers 30-140MPa, specifically designed for oil industry drilling equipment, especially for high-pressure measurement in imported fracturing trucks and cementing trucks.

②Comprehensive accuracy of 0.5%FS, non-linearity of 0.1%FS, repeatability of 0.05%FS, and long-term stability of 0.1%FS/year.
③Response time ≤1ms, offering fast dynamic response to meet real-time data acquisition needs in high-pressure measurement scenarios.
④Operating temperature range of -20~80°C, compensation temperature range of -20~70°C, adapting to harsh industrial environments.
⑤Standard (4-20)mA output or customized options, providing multiple wiring methods including 4-pin, 6-pin, aviation plug, and 2-pin connectors.
⑥Features on-site zero calibration function. When powered on, shorting the yellow and green wires for 3-5 seconds enables the zeroing operation.



Product Specification



Parameter
PT-601
Measuring range
30-140Mpa optional
Output signal
(4-20) mA or customized
Non-linearity
 0.1%FS
Long-term stability
0.1%FS/year
Compensation temperature
(-20~70)℃
Insulation resistance
≥ 500MΩ/100VDC
Safety pressure
200%
Power supply
10-32VDC
Comprehensive accuracy
0.5%FS
Repeatability
0.05%FS
Operating temperature
(-20-80)℃
Response time
≤1ms
Overload pressure
150%FS
Protection level
 IP67 can be customized
Warranty
12 months
Customized support

OEM, ODM

Single package size

23X19X15 cm

Single gross weight

3.000 kg

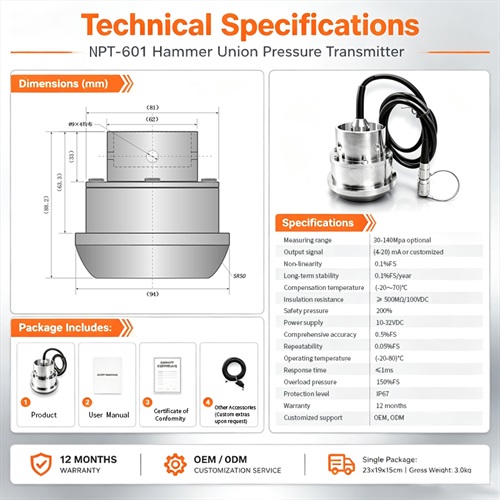

Product Dimensions

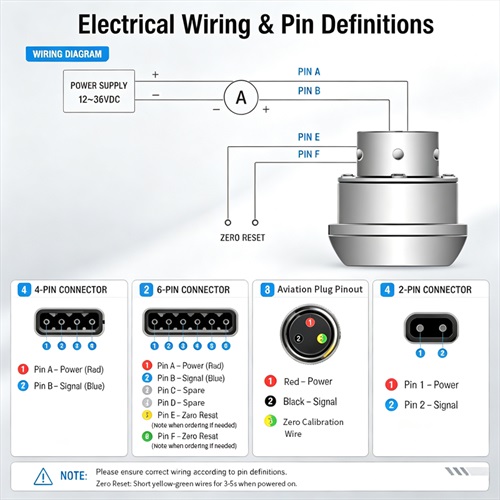

Electrical Connection:

  1. 4-pin connector: Pin A – Power (red); Pin B – Signal (blue).

  2. 6-pin connector: Pin A – Power (red); Pin B – Signal (blue); C/D – Unused/Spare; E/F – Reset line (if required, please specify when ordering).

  3. Aviation connector wiring: Red – Power; Black – Signal; Yellow/Green – Reset/calibration line.

  4. 2-pin connector: Pin 1 – Power; Pin 2 – Signal.

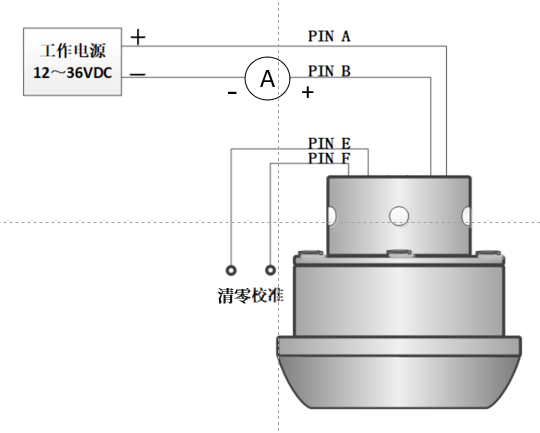

The “1502” hammer-union type pressure transmitter has a field calibration function. Field calibration should be performed using an electronic pressure simulation: power the calibration terminal, or connect (short) the calibration terminal, to generate a signal output of approximately 100% of full-scale pressure. This can be used to adjust the gain of the user’s instrument or data acquisition device. The transmitter connections are as follows:
Zeroing operation: With power on, connect the yellow and green wires together for 3–5 seconds to complete zeroing.



Product Features



①Measuring range covers 30-140MPa, specifically designed for oil industry drilling equipment, especially for high-pressure measurement in imported fracturing trucks and cementing trucks.

②Comprehensive accuracy of 0.5%FS, non-linearity of 0.1%FS, repeatability of 0.05%FS, and long-term stability of 0.1%FS/year.
③Response time ≤1ms, offering fast dynamic response to meet real-time data acquisition needs in high-pressure measurement scenarios.
④Operating temperature range of -20~80°C, compensation temperature range of -20~70°C, adapting to harsh industrial environments.
⑤Standard (4-20)mA output or customized options, providing multiple wiring methods including 4-pin, 6-pin, aviation plug, and 2-pin connectors.
⑥Features on-site zero calibration function. When powered on, shorting the yellow and green wires for 3-5 seconds enables the zeroing operation.



Product Dimensions

Electrical Connection:

  1. 4-pin connector: Pin A – Power (red); Pin B – Signal (blue).

  2. 6-pin connector: Pin A – Power (red); Pin B – Signal (blue); C/D – Unused/Spare; E/F – Reset line (if required, please specify when ordering).

  3. Aviation connector wiring: Red – Power; Black – Signal; Yellow/Green – Reset/calibration line.

  4. 2-pin connector: Pin 1 – Power; Pin 2 – Signal.


The “1502” hammer-union type pressure transmitter has a field calibration function. Field calibration should be performed using an electronic pressure simulation: power the calibration terminal, or connect (short) the calibration terminal, to generate a signal output of approximately 100% of full-scale pressure. This can be used to adjust the gain of the user’s instrument or data acquisition device. The transmitter connections are as follows:
Zeroing operation: With power on, connect the yellow and green wires together for 3–5 seconds to complete zeroing.

Product Specification



Parameter
PT-601
Measuring range
30-140Mpa optional
Output signal
(4-20) mA or customized
Non-linearity
 0.1%FS
Long-term stability
0.1%FS/year
Compensation temperature
(-20~70)℃
Insulation resistance
≥ 500MΩ/100VDC
Safety pressure
200%
Power supply
10-32VDC
Comprehensive accuracy
0.5%FS
Repeatability
0.05%FS
Operating temperature
(-20-80)℃
Response time
≤1ms
Overload pressure
150%FS
Protection level
 IP67 can be customized
Warranty
12 months
Customized support

OEM, ODM

Single package size

23X19X15 cm

Single gross weight

3.000 kg
