Products Description

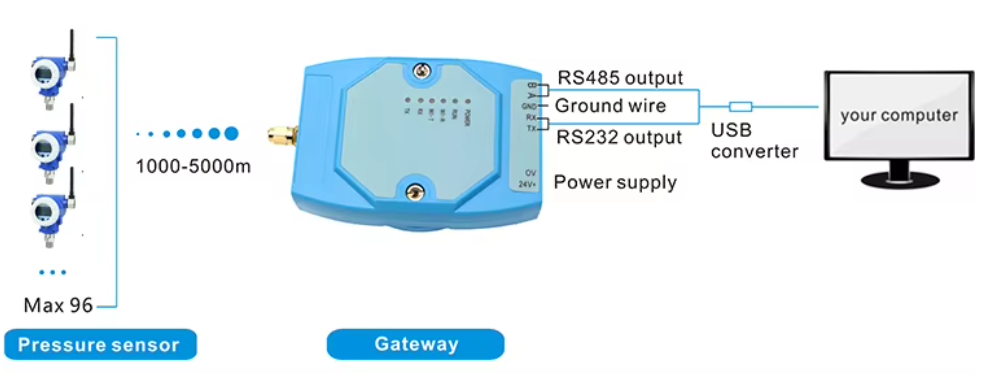

APT243 wireless pressure transmitter is high accuracy and low consumption wireless pressure measuring device.
It is simple to install,without onsite wiring,which saves hassle of wiring bridge frame manpower and construction cost, especially suitable for not easy wiring and unable to power supply.
Applications
● Pipeling pressure monitoring
● Machinery and oil industry
● Paper making, pharmaceutical
● Electric power, environmental protection and food industry
● Metallurgical and chemical industry
● Field or inconvenient power distribution
Product Features
● Wide measuring range, remote transmission distance
● High accuracy
● Battery-powered，low consumption
● LCD display
● Compact
Product Specification
| Pressure type | absolute, differential |
| Output | digital, wireless |
| Material | stainless steel |
| Protection level | IP65 |
| Other characteristics | precision, remote |
| Pressure range | Max.: 260,000,000 Pa (37,709.81 psi) Min.: 100,000 Pa (14.5 psi) |
| Precision | 0.25 %, 0.5 % |
| Process temperature | Max.: 60 °C (140 °F) Min.: -20 °C (-4 °F) |
Product Dimensions
Product Features
● Wide measuring range, remote transmission distance
● High accuracy
● Battery-powered，low consumption
● LCD display
● Compact
Product Dimensions
Product Specification
| Pressure type | absolute, differential |
| Output | digital, wireless |
| Material | stainless steel |
| Protection level | IP65 |
| Other characteristics | precision, remote |
| Pressure range | Max.: 260,000,000 Pa (37,709.81 psi) Min.: 100,000 Pa (14.5 psi) |
| Precision | 0.25 %, 0.5 % |
| Process temperature | Max.: 60 °C (140 °F) Min.: -20 °C (-4 °F) |
