Products Description
The AT CS-iPT608-C wireless pressure transmitter is the terminal of the measuring system. It is a high-precision intelligent pressure measuring instruments with battery-powered, wireless communications, liquid crystal display, more quality sensor core, ASIC and accessories using for transducer, The production lines and processes is always produce military products to produce the high-precision, high-quality, small size, easy to installation, simple and cost-effective pressure type transmission , and embedded Zigbee wireless communication module, adopting the 2.4GHz radio frequency transceiver conforming to the Zigbee protocol standard and the CSMA/CA anti-collision mechanism effectively avoid channel blockage and data loss due to simultaneous data transmission.
Applications
● Monitoring pressure in energy pipelines (e.g. oil, steam, heating) during transportation.
● Field occasions where power supply is inconvenient.
● Enabling wireless remote signal transmission for pressure monitoring.
● Collecting and monitoring data via a host computer when used with a wireless communication receiver module.
Product Features
● High-precision, high-quality, small size
● Easy to installation
● Simple and cost-effective pressure type transmission
● Embedded Zigbee wireless communication module
Product Specification
| Power Supply | 3.6V lithium battery |
| Measuring Range | 0 ~ 40Mpa (can be customized) |
| System Accuracy | 0.5% FSR |
| Communication Frequency Band | 2.405GHz～2.480GHz |
| Communication Speed | 9600bps |
| Pressure Interface | M20X1.5 |
| Data Transmission Rate | Every 1 minute (can be customized) |
| Battery-powered Time | More than six months (when the data update rate is 5 minutes) |
| Other Features | The CS-iPT608C wireless pressure transmitter is equipped with an LCD display and keypad, making it easy to observe and set in the field. When in use, open the back cover and switch K1 to the ON position to power on the wireless pressure transmitter |

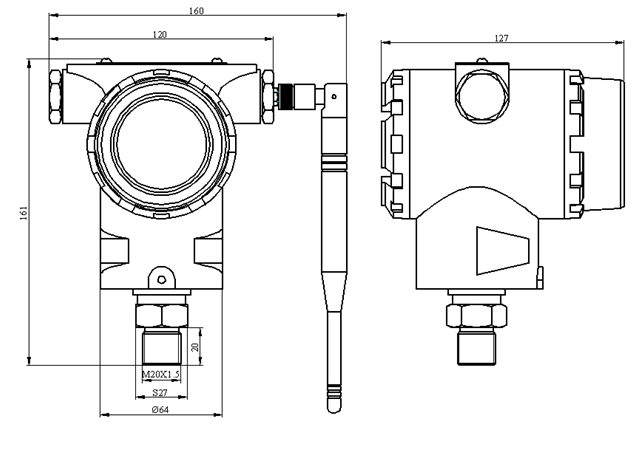

Product Dimensions
Product Features
● High-precision, high-quality, small size
● Easy to installation
● Simple and cost-effective pressure type transmission
● Embedded Zigbee wireless communication module
Product Dimensions
Product Specification
| Power Supply | 3.6V lithium battery |
| Measuring Range | 0 ~ 40Mpa (can be customized) |
| System Accuracy | 0.5% FSR |
| Communication Frequency Band | 2.405GHz～2.480GHz |
| Communication Speed | 9600bps |
| Pressure Interface | M20X1.5 |
| Data Transmission Rate | Every 1 minute (can be customized) |
| Battery-powered Time | More than six months (when the data update rate is 5 minutes) |
| Other Features | The CS-iPT608C wireless pressure transmitter is equipped with an LCD display and keypad, making it easy to observe and set in the field. When in use, open the back cover and switch K1 to the ON position to power on the wireless pressure transmitter |
