Products Description
This NB-IoT smart wireless pressure transmitter integrates communication, power supply, and sensing functions into a single unit, enabling straightforward installation without the need for complex wiring. Equipped with an NB-IoT module, it is a low-power intelligent device with wireless communication capabilities, compatible with most online multi-functional monitoring platforms. Optional isolation explosion-proof and isolation dust explosion-proof versions are available to suit different working conditions.
Applications
● Industrial IoT
● Smart Medical
● Water supply network monitoring
● Smart Park
● Building Intelligence
● Comprehensive environmental monitoring of the tunnel
● Intelligent monitoring of water supply pipe network
● Intelligent monitoring of water-saving system
Product Features
● Equipped with NB-IoT module
● The integrated lithium-ion battery is easy to replace.
● Data can be set and stored through PC and APP
● LCD LCD display with no button magnetic wake-up
● Using imported wafers
● Built-in pulse buffer
● Increased isolation/dust explosion protection
● Wider temperature compensation range
● Stainless steel laser nameplate, durable and traceable
Product Specification
| Measurement Medium | Liquid or gas (compatible with contact materials) |
| Pressure Range | Pressure range <10kPa (for non-conductive, non-corrosive, non-explosive gas with humidity ≤90%RH and no condensation). -100kPa ~ 0 ~ 100MPa (see range selection table for details) |
| Pressure Mode | Gauge pressure, absolute pressure, negative pressure |
| Medium Temperature | -40 ~ 85°C |
| Stability | ±0.1% FS/year |
| Temperature Drift | ±0.01%FS/°C (within temperature compensation range), ±0.05%FS/°C (outside temperature compensation range) |
| Explosion-proof Type | Isolation type Ex db IIC T6 Gb; Isolation dust type Ex tb IIIC T80°C Db |
| Protection Level | IP66 |
| Display Mode | LCD liquid crystal display |
| Durability | 1×10⁶ cycles (number of cycles from lower range limit to upper range limit) |
| Overall Weight | ≈5.5kg |
| Resolution | 0.05%FS |

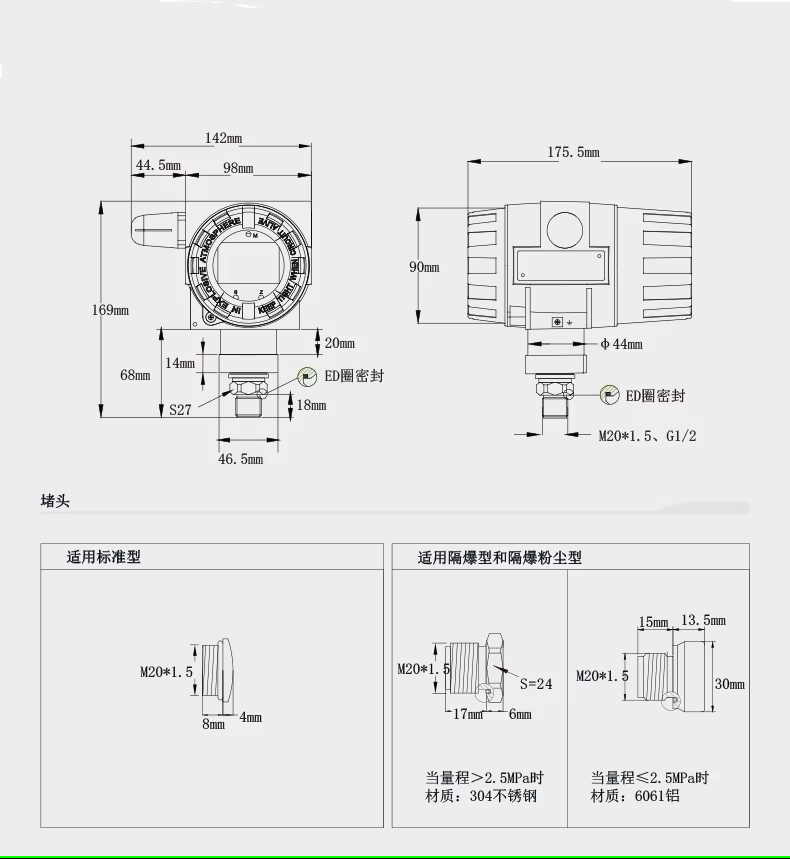

Product Dimensions
Product Features
● Equipped with NB-IoT module
● The integrated lithium-ion battery is easy to replace.
● Data can be set and stored through PC and APP
● LCD LCD display with no button magnetic wake-up
● Using imported wafers
● Built-in pulse buffer
● Increased isolation/dust explosion protection
● Wider temperature compensation range
● Stainless steel laser nameplate, durable and traceable
Product Dimensions
Product Specification
| Measurement Medium | Liquid or gas (compatible with contact materials) |
| Pressure Range | Pressure range <10kPa (for non-conductive, non-corrosive, non-explosive gas with humidity ≤90%RH and no condensation). -100kPa ~ 0 ~ 100MPa (see range selection table for details) |
| Pressure Mode | Gauge pressure, absolute pressure, negative pressure |
| Medium Temperature | -40 ~ 85°C |
| Stability | ±0.1% FS/year |
| Temperature Drift | ±0.01%FS/°C (within temperature compensation range), ±0.05%FS/°C (outside temperature compensation range) |
| Explosion-proof Type | Isolation type Ex db IIC T6 Gb; Isolation dust type Ex tb IIIC T80°C Db |
| Protection Level | IP66 |
| Display Mode | LCD liquid crystal display |
| Durability | 1×10⁶ cycles (number of cycles from lower range limit to upper range limit) |
| Overall Weight | ≈5.5kg |
| Resolution | 0.05%FS |
