Products Description
System Summarize of High quality Can bus Wireless Water or oil Transmitter for Tracking and monitor remote
The "Liquid height measuring system in GPRS communicate mode" include "Liquid height measuring terminal equipment in GPRS communicate mode", "Server Management Software" and "Configuration Line". It is used for timing measure liquid height value, temperature value, longitude and latitude data, date and time information and show these value in the "Server Management Software".
Product Features
● GPRS communication
● CE, ISO certified
● IP68 protection grade
● 0.5%F.S precision
● 3.6VDC battery or 10~35VDC external power
Product Specification
| Measure Range | 0~3m diesel |
| Measure Precision | 0.5%F.S |
| Power Supply Way | 3.6VDC battery or 10VDC~35VDC external power supply. |
| Defend Grade | IP65 |
| Work Temperature | -25°C~85°C |
| Storage Temperature | -25°C~85°C |
| Communication Frequency | GSM/GPRS 850/900/1800/1900MHz |
| Interface Type | NPT1 |
| Timing Work Time | 5 minute ~ 1000 minute(can set) |
| Append Function | Append Function |

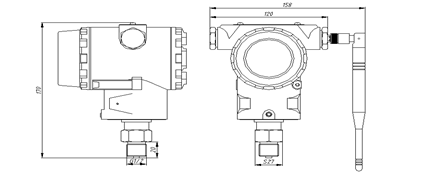

Product Dimensions
Product Features
● GPRS communication
● CE, ISO certified
● IP68 protection grade
● 0.5%F.S precision
● 3.6VDC battery or 10~35VDC external power
Product Dimensions
Product Specification
| Measure Range | 0~3m diesel |
| Measure Precision | 0.5%F.S |
| Power Supply Way | 3.6VDC battery or 10VDC~35VDC external power supply. |
| Defend Grade | IP65 |
| Work Temperature | -25°C~85°C |
| Storage Temperature | -25°C~85°C |
| Communication Frequency | GSM/GPRS 850/900/1800/1900MHz |
| Interface Type | NPT1 |
| Timing Work Time | 5 minute ~ 1000 minute(can set) |
| Append Function | Append Function |
