Products Description
The Wireless level transmitters with battery power supply are devices used to measure the level of liquids or solids, and transmit the data wirelessly to a receiver or monitoring system.
Product Features
● Battery-powered wireless level transmitter with microprocessor & lithium-ion battery for ultra-low power.
● 6-bit LCD with power and network signal display.
● Works in -30 to 80℃ with good temperature performance.
● Magnet panel display, zero function & USB for settings/calibration.
● Multi-point linear calibration, zero/full transfer & TCP/IP for time sync.
● Data storage/replacement & dedicated PC software for parameters.
● High stability with anti-reverse, anti-surge & anti-interference.
● Medium contact part: stainless steel, various interfaces.
● Aluminum alloy shell, IP67 protection.
● Explosion-proof: meets GB3836.4 ExiaIICT6, certified.
● Industrial-grade for stable & reliable performance.
Product Specification
| Measurement Range | 0 ~ 1m...100m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≥ 2X rated range |
| Accuracy @ 25℃ | ±0.25% (Typ), ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ), ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ), ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%FS/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/℃ (>100KPa), ±0.02%FS/℃ (≤100KPa) |
| Span Temperature Drift | ±0.01%FS/℃ (>100KPa), ±0.02%FS/℃ (≤100KPa) |
| Operating Temperature | -30-80℃ |
| Storage Temperature | -40-120℃ |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | ≥100MΩ@100VDC |
| Protection Rating | IP67 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.1Kg (without cable) |
| Product Name | Wireless Pressure Transmitter |
| Weight | 1.2kg |
| Accuracy | 0.25%FS |
| Housing Material | Stainless Steel |
| Process Connection | M20 / G1/4 And So On |
| Explosion Proof | Exia II CT6 |
| Measuring Range | 0-10kpa-100MPa |
| Operating Temperature | -20-85℃ |
| Display | LCD |
| Wireless Technology | GPRS, NB, 433M, Wireless |

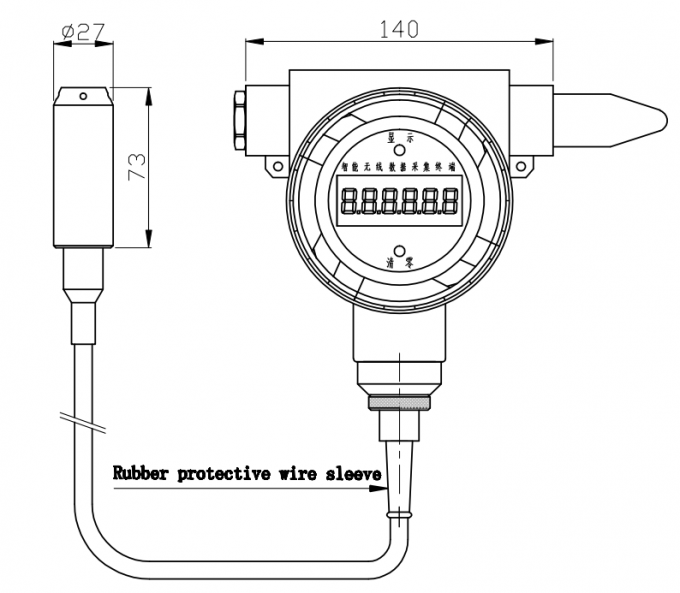

Product Dimensions
Product Features
● Battery-powered wireless level transmitter with microprocessor & lithium-ion battery for ultra-low power.
● 6-bit LCD with power and network signal display.
● Works in -30 to 80℃ with good temperature performance.
● Magnet panel display, zero function & USB for settings/calibration.
● Multi-point linear calibration, zero/full transfer & TCP/IP for time sync.
● Data storage/replacement & dedicated PC software for parameters.
● High stability with anti-reverse, anti-surge & anti-interference.
● Medium contact part: stainless steel, various interfaces.
● Aluminum alloy shell, IP67 protection.
● Explosion-proof: meets GB3836.4 ExiaIICT6, certified.
● Industrial-grade for stable & reliable performance.
Product Dimensions
Product Specification
| Measurement Range | 0 ~ 1m...100m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≥ 2X rated range |
| Accuracy @ 25℃ | ±0.25% (Typ), ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ), ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ), ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%FS/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/℃ (>100KPa), ±0.02%FS/℃ (≤100KPa) |
| Span Temperature Drift | ±0.01%FS/℃ (>100KPa), ±0.02%FS/℃ (≤100KPa) |
| Operating Temperature | -30-80℃ |
| Storage Temperature | -40-120℃ |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | ≥100MΩ@100VDC |
| Protection Rating | IP67 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.1Kg (without cable) |
| Product Name | Wireless Pressure Transmitter |
| Weight | 1.2kg |
| Accuracy | 0.25%FS |
| Housing Material | Stainless Steel |
| Process Connection | M20 / G1/4 And So On |
| Explosion Proof | Exia II CT6 |
| Measuring Range | 0-10kpa-100MPa |
| Operating Temperature | -20-85℃ |
| Display | LCD |
| Wireless Technology | GPRS, NB, 433M, Wireless |
