Products Description
This is a no-contact wireless integrated industrial ultrasonic level sensor for water tank level, using ultrasonic sound principle. It operates on DC 5V with normal current <20mA and sleep current <1mA, working at 40kHz frequency. With a max measuring range of 7.5 meters, <22cm blind area, 4mm ranging resolution, and accuracy of ±(1%Reading+10mm), it outputs via MAX485 modbus protocol. It works in -20℃~+70℃, has IP65 protection, optional 4G RTU/WiFi or LORA/LORAWAN for data transmission, and is suitable for channel, reservoir, river, and urban pipe network water level monitoring, with a 1-year warranty.
Applications
● Channel water level monitoring
● Irrigation area -Open channel water level monitoring
● Cooperate with standard weir trough (such as Parsell trough) to measure flow
● Water level monitoring of the reservoir
● Natural river water level monitoring
● Water levelmonitoring of underground pipe network
● Urban flooding water level monitoring
● Electronic water gauge
Product Features
● Small size and easy install
● Non-Contact type
● Low power supply DC5V
● Stable and reliable
● High precision
Product Specification

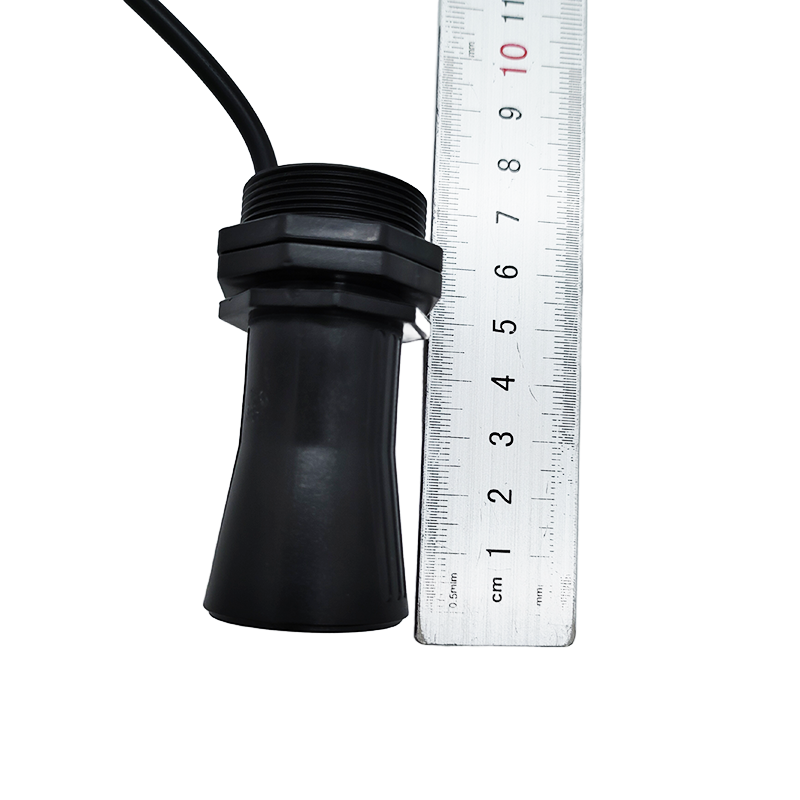

Product Dimensions
Product Features
● Small size and easy install
● Non-Contact type
● Low power supply DC5V
● Stable and reliable
● High precision
Product Dimensions
Product Specification
